The Petzl ROLLCLIP A combines a pulley and a locking carabiner in a single component. This eliminates one connection in your setup — fewer components, less weight, and less that can twist or get in the way.

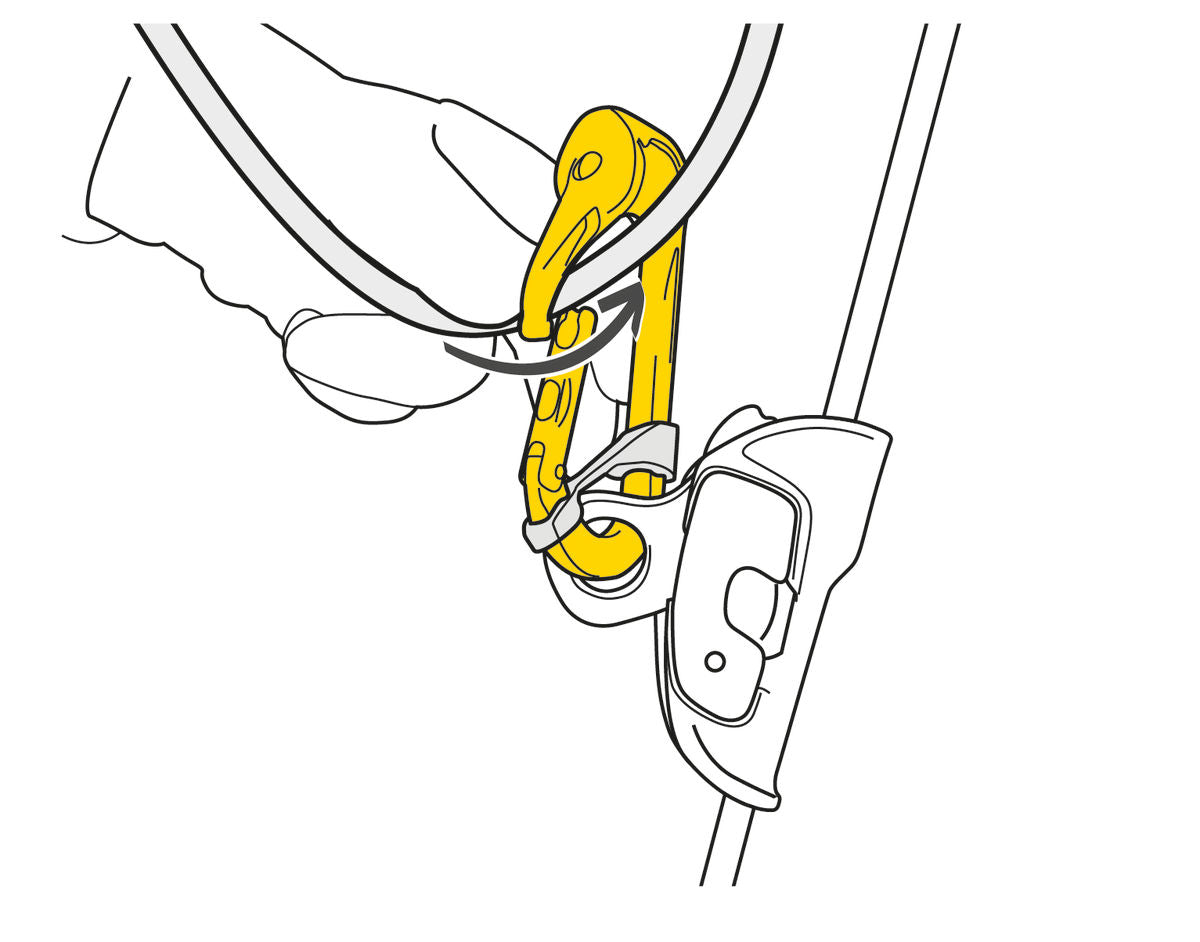

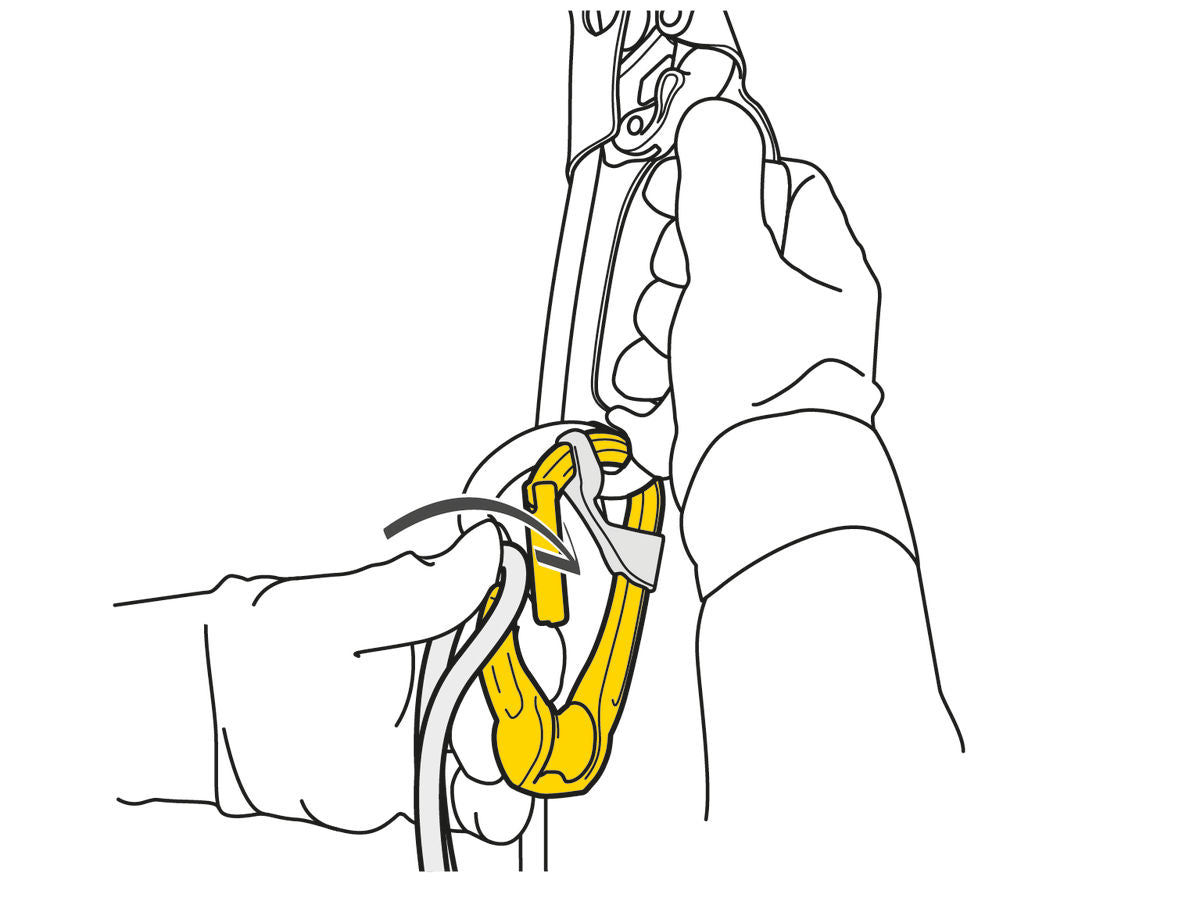

The pulley is accessible from the side, allowing you to thread the rope while the carabiner is attached to the anchor. 85 percent efficiency, for 7 to 13 mm rope.
Pay attention when choosing the locking mechanism

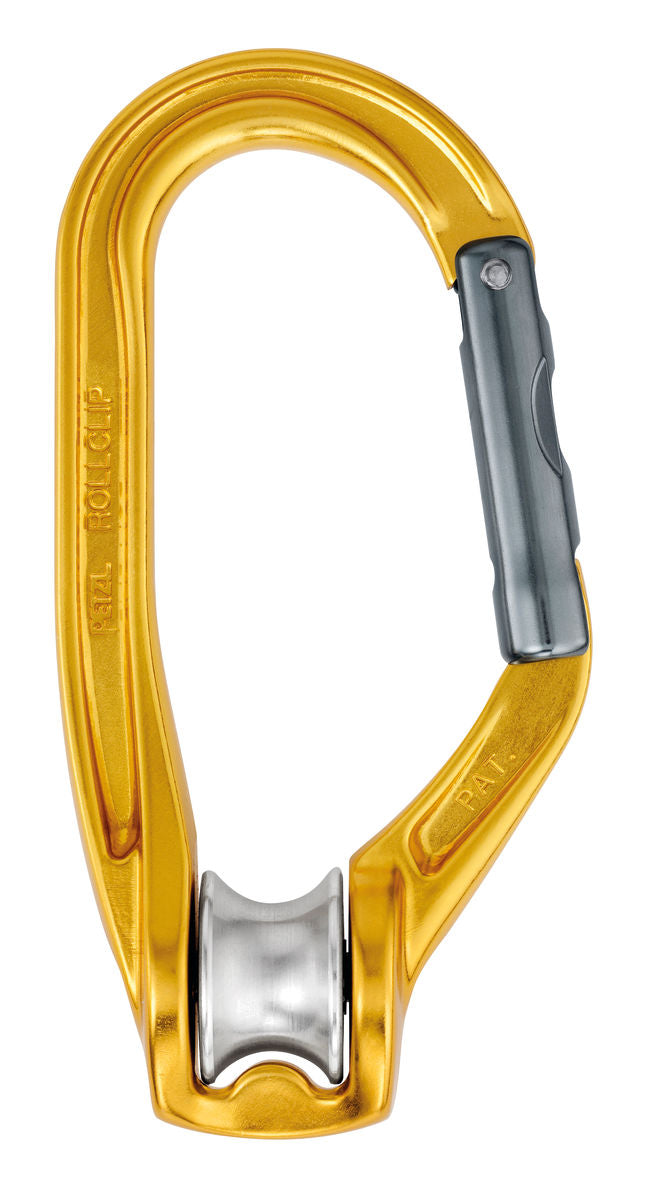

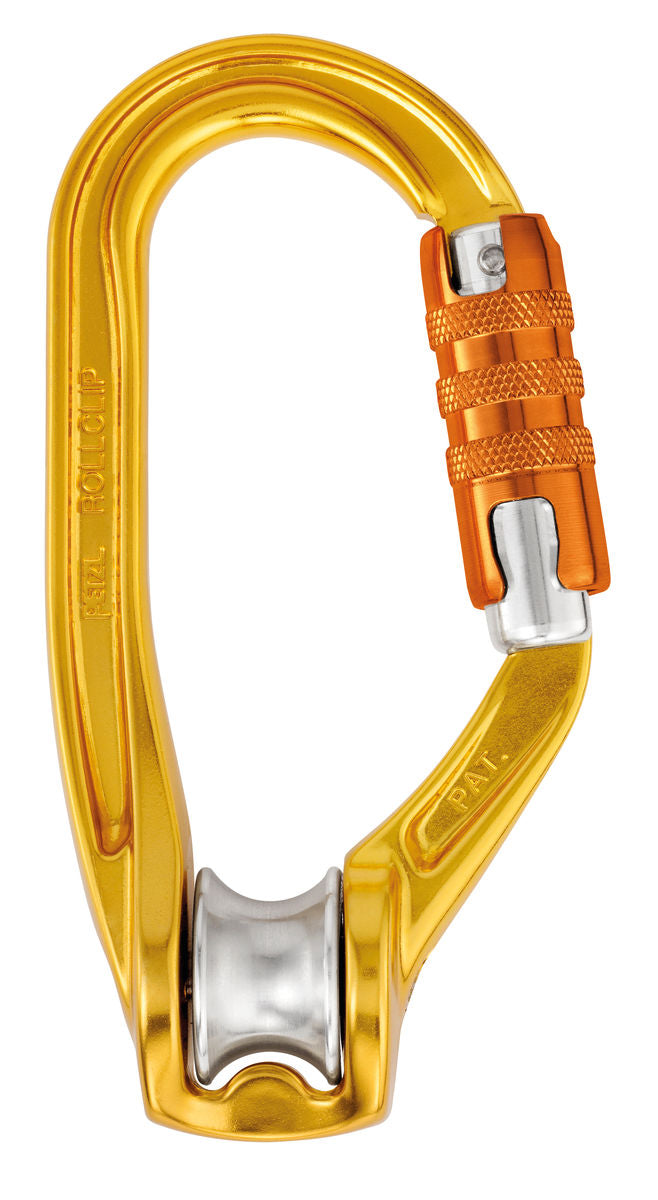

The version with a Triact lock is certified according to CE EN 362 and may be used as a connecting element in a fall protection system. The non-locking version cannot: it only has CE EN 12275 and CE EN 12278 and is intended as a pulley, not as a connecting element for fall protection.
Specifications
| Rope diameter | 7 to 13 mm |
|---|---|
| Maximum working load | 2 x 2 = 4 kN |
| Longitudinal strength | 20 kN |
| Transverse strength | 8 kN |
| Efficiency | 85 % |
| Sheave diameter | 18 mm |
| Material | Aluminium |
| Warranty | 3 years |
| Petzl reference(s) | P74 TL, P74 |
-
